Voltage: 12V/24V
Wattage: 12W Per Metre
IP Rating: IP67
Beam Angle : 180 °
Dimension:12x12mm
Storage temperature. : -25 ~ 60°C
Ambient temperature. : -25 ~ 50°C
Standard Packaging: 5M/Roll , 10M/Roll

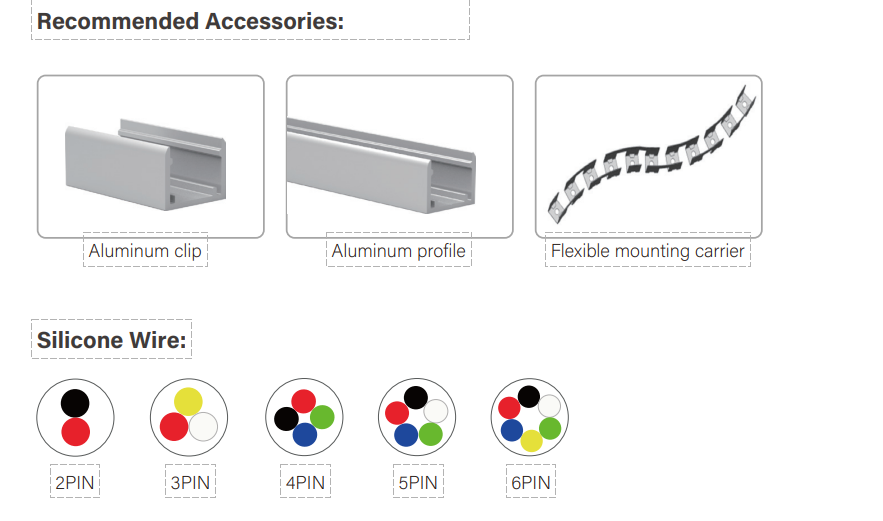

Accessories : Mounting clips, aluminum profile, flexible profile

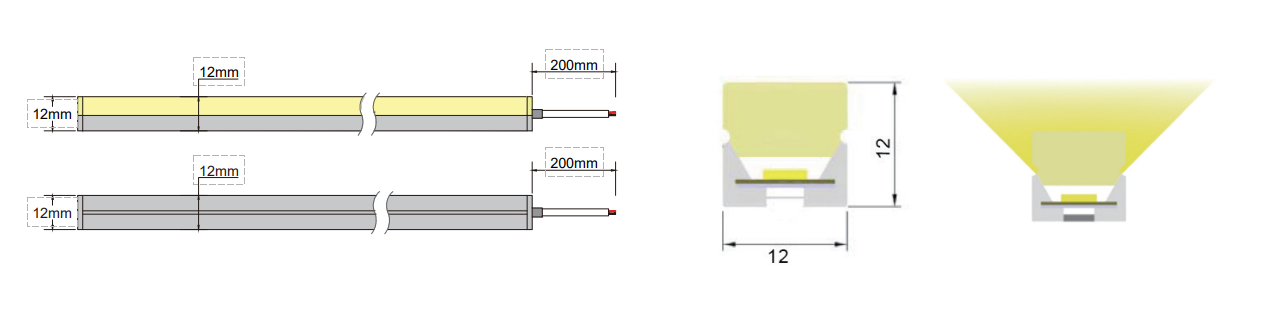

Dimensions & Waterproof:
Specifications:
| Product Model | CCT/Color | IC Protocol | Pixels/m | Max Power(w/m) |
Luminous
Eficacy(LM/W)
|
Cut Length(mm)@12V | Cut Length(mm)@24V | CRI |
| WTP-TP1212U-S | Red,Green,Blue,etc | / | / | 10 | 8-40 | 25 | 50 | Single color |
| WTP-TP1212U-w | 3000K/4000K/-W 6500K | / | / | 10 | 70-100 | 25 | 50 | Ra80+,Ra90+,Ra95+ |
| WTP-TP1212U-CCT | CCT combination | / | / | 10 | 70-80 | 25 | 50 | Ra80+,Ra90+,Ra95+ |
| WTP-TP1212U-RGB | RGB | / | / | 14.4 | 25-35 | 50 | 100 | RGB |
| WTP-TP1212U-RGBW | RGBW | / | / | 19.2 | 20-30 | 50 | 100 | RGBW |
| WTP-TP1212U-S | Red,Green,Blue,etc | WS2811/TM1934 | 8 | 11.52 | 8-40 | 50 | 101 | Single color |
| WTP-TP1212U-w | 3000k/4000k/6500k | WS2811/TM1934 | 8 | 11.52 | 70-100 | 50 | 100 | Ra80+,Ra90+,Ra95+ |
|
WTP-TP1212U
-CCT
|
CCT
combination
|
WS2811/TM1934 | 10 | 9.6 | 70-80 | 50 | 100 | Ra80+,Ra90+,Ra95+ |
|
WTP-TP1212U-RGB
|
RGB
|
WS2811/TM1934 | 10 | 14.4 | 25-35 | 50 | 100 | RGB |
|
WTP-TP1212U-RGBW
|
RGBW
|
TM1824/SM16704UCS2904 | 10 | 19.2 | 20-30 | 50 | 100 | Ra80+,Ra90+,Ra95+ |
|
WTP-TP1212U-S
|
Red,Green,Blue,etc
|
DMX512 | 6 | 14.4 | 8-40 | / | 166 | Single color |
|
WTP-TP1212U-w
|
3000K/4000K/6500K
|
DMX512 | 6 | 14.4 | 70-100 | / | 166 | Ra80+,Ra90+,Ra95+ |
|
WTP-TP1212U-CCT
|
CCT combination
|
DMX512 | 6 | 14.4 | 70-80 | / | 166 | Ra80+,Ra90+,Ra95+ |
|
WTP-TP1212U-RGB
|
RGB
|
DMX512 | 10 | 14.4 | 25-35 | 50 | 100 | RGB |
|
WTP-TP1212U-RGBW
|
RGBW
|
DMX512 | 10 | 19.2 | 20-30 | 50 | 100 | Ra80+,Ra90+,Ra95+ |
