Voltage: 12V/24V
Wattage: 12W Per Metre
IP Rating: IP67
Beam Angle : 120 °
Dimension:05x13mm
Storage temperature. : -25 ~ 60°C
Ambient temperature. : -25 ~ 50°C
Standard Packaging: 5M/Roll , 10M/Roll

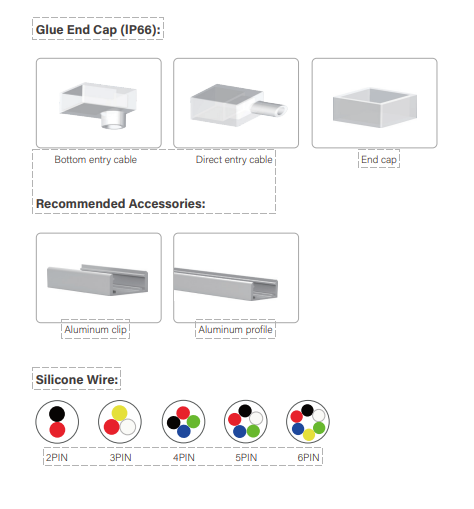

Accessories : Mounting clips, aluminum profile, flexible profile

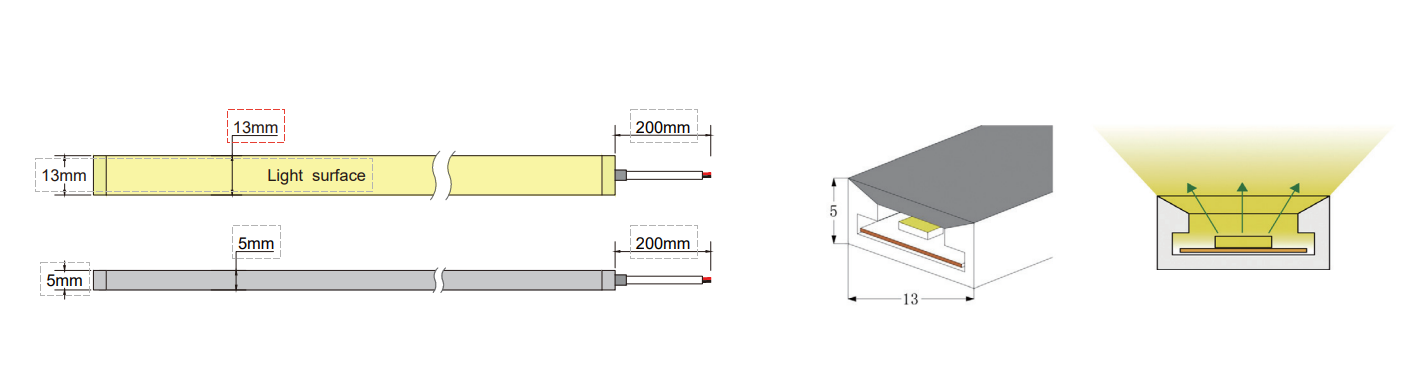

Dimensions & Waterproof:
Dimensions & Waterproof:
| Product Model | Product Model | IC Protocol | Pixels/m |
Max
Power(w/m)
|
Luminous
Eficacy(LM/W)
|
CutLength(mm)@12V | CutLength(mm)@24V | CRI |
| WTP-TP0513-S | Red,Green,Blue,etc | / | / | 10 | 30 | 25 | 50 | Single color |
| WTP-TP0513 -W | 3000K/4000K/6500k | / | / | 10 | 100-200 | 25 | 50 | Ra80+,Ra90+,Ra95+ |
| WTP-TP0513-CCT |
CCT
combination
|
/ | / | 10 | 100-200 | 25 | 50 | Ra80+,Ra90+,Ra95+ |
| WTP-TP0513 -RGB | RGB | / | / | 14.5 | 45 | 50 | 100 | RGB |
| WTP-TP0513 -RGBW | RGBW | / | / | 19.2 | 64 | 50 | 100 | RGBW |
| WTP-TP0513 -S | Red,Green,Blue,etc | WS2811/TM1934 | 8 | 11.52 | 30 | 50 | 100 | Single color |
| WTP-TP0513 -W | 3000K/4000K/6500k | WS2811/TM1934 | 8 | 11.52 | 100 | 50 | 100 | Ra80+,Ra90+,Ra95+ |
|
WTP-TP0513-CCT
|
CCT combination | WS2811/TM1934 | 10 | 9.6 | 100 | 50 | 100 | Ra80+,Ra90+,Ra95+ |
| WTP-TP0513 -RGB | RGB | WS2811/TM1934 | 10 | 14.5 | 45 | 50 | 100 | RGB |
| WTP-TP0513-RGBW | RGBW | WTP-TP0513-RGBW | 10 | 19.2 | 65 | 50 | 100 | Ra80+,Ra90+,Ra95+ |
| WTP-TP0513 -S | Red,Green,Blue,etc | DMX512 | 6 | 14.4 | 30 | / | 166 | Single color |
| WTP-TP0513 -W | 3000K/4000K/6500k | DMX512 | 6 | 14.4 | 100 | / | 166 | Ra80+,Ra90+,Ra95+ |
| WTP-TP0513-CCT | CCT combination | DMX512 | 6 | 14.4 | 100 | / | 166 | Ra80+,Ra90+,Ra95+ |
| WTP-TP0513 -RGB | RGB | DMX512 | 10 | 14.4 | 45 | 50 | 100 | RGB |
| WTP-TP0513-RGBW | RGBW | DMX512 | 10 | 19.2 | 65 | 50 | 100 | Ra80+,Ra90+,Ra95+ |
